METALLIC DIAPHRAGM PUMPS TFG800 2"

Techni-flow pump



pumps@techni-flow-pumps.com





Air operated diaphram pumps range



The range of air operated  double diaphragm pumps Techni-flow TFG800 metal body is intended for a wide range of applications including: the market for the production of paints , glue, solvents and flammable ATEX zone , environment : pumping sludge treatment plants , building with pumping slurry in the ceramic industry , textile dyes with pumping and in the food industry with the FDA variant of stainless steel and tri clamp connection : pump topping , juice , syrup , alcohol.

In the ceramic industry or the fluid is pumped from the main slurry , industrial tandanse ons to select pneumatic pumps TFG1500 membranes greater dimention in order to lessen the fluid flow velocity and to lessen the wear of the pump by abrasion .

The shipbuilding industries are also user of pneumatic diaphragm pump 2 " but also for reasons of size and weight of the model tire pump TFG400 more transportable membranes.

The printing industry uses virtually all dimentions larger pumps for unloading trucks dice glue , ink and varnish, but printing machines are mainly find smaller models pneumatic pump TFG200 membrane.

Encor or solvent for pumping the smallest model of pneumatic diaphragm pump TFG100 atex méallique

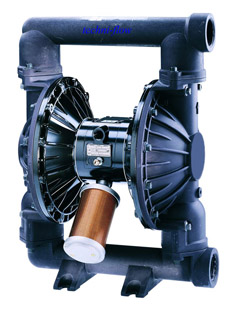

tfg800 metallic diaphragm pumps range atex
curve of the diaphragm pump tfg800atex

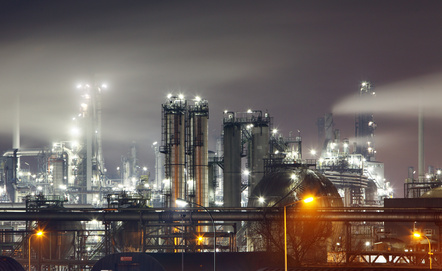

Application in the petroleum industry

TECHNICAL SPECIFICATIONS:

Maximum flow of water 650 l / min
-pumpable maximum particle diameter 6.4mm
Atex-standard
-P maximum 8.3b
Aspiration-max m
REFERENCES
BODY
DIAPHRAGM
TFG800ATF
ALUMINIUM
PTFE
TFG800ASP
ALUMINIUM
SANTOPREN
TFG800STF
INOX
PTFE
