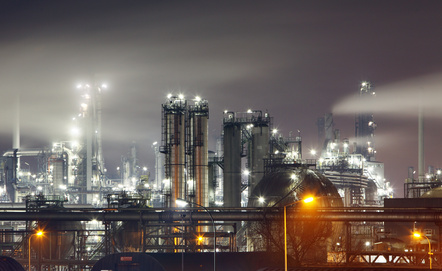

air operated diaphragm pumps in refinery
Pumtechnologie in der Atex-Zone

Tel. +33 5 63 02 00 10


pumps@techni-flow-pumps.com


Air operated  diaphragm pumps

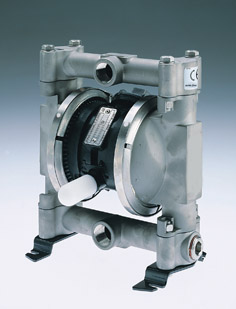

small atex pump explosion proof
 Air operated diaphragm pump TFG100-ATEX

This kind of Air operated diaphragm pump was specially developed for the pumping of flammable industrial liquiqs in the ATEX-zone, such as in refineries, in the color industry, glue industry and ace resin industry.

The Atex-version is very safe for the operator: there is no contact with electricity, the pumps are completely conductive, a safety risk due to electricity is therefore barred.

Product line:
TFG100-ATF / body aluminium / membrane PTFE
TFG100-ABN / body aluminium / membrane Bunna
TFG100-STF / body steel alloy / membrane PTFE
TFG100-ACTF / body acetal / membrane PTFE
TFG100-STF-FDA / body steel alloy / membrane PTFE

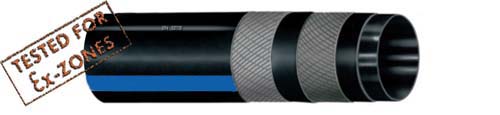

Further we dispose a large assortment of peristaltic ATEX-pumps.		tubing atex-zone
We can offer you numerous flexible tubes and couplings, suitable for our Techni-flow pumps:

KITFLEX100-ATF
KITFLEX100-ABN
KITFLEX100-STF
KITFLEX100-STF-PFA
KITFLEX100-ACT

The flexible-tube-kits for the air operated diaphragm pump TFG100 are composed as follows:

- 2 couplings Camlock type F 3/4" steel alloy or aluminium
- 2 couplings Camlock type C pin DN19
- gasket PTFE
- 1,5 m flexible tube DN19 Polyethylene high-molecular (ATF-STF-ACTF)
- 1,5 m flexible tube DN19 NBR  (ABN)

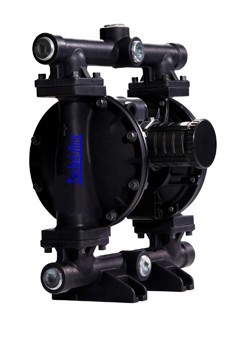

Pump tfg200 1" for ATEX-Zone

 Air operated diaphragm pump TFG200-ATEX

This pump is an all-rounder !

The flow-rate is very impressive for its small dimension, many applications are possible:
- pumping of flammable dissolvers, petrol et cetera

The model TFG200 is easy transportable, has a light weight and avoids best possible an accumulation of  the flow.

Product line:
TFG200-ATF
TFG200-ABN
TFG200-STF
TFG200-STF-FDA
KITFLEX200-ATF
KITFLEX200-ABN
KITFLEX200-STF
KITFLEX200-STF-FDA

composed as follows:

-2 couplings Camlock type F 1" steel alloy or aluminium
-2 couplings Camlock type C pin DN25
- gasket PTFE
-1,5 m flexible tube DN25 Polyethylene high-molecular  (ATF-STF-ACTF)
-1,5 m flexible tube DN25 NBR (ABN)

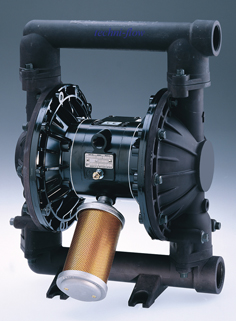

pump double membrane for Atex zone

 Air operated diaphragm pump TFG400 1"1/2 ATEX

TFG400-ATF
TFG400-ABN
TFG400-STF
TFG400-STF-FDA


KITFLEX400-ATF
KITFLEX400-ABN
KITFLEX400-STF
KITFLEX400-STF-FDA

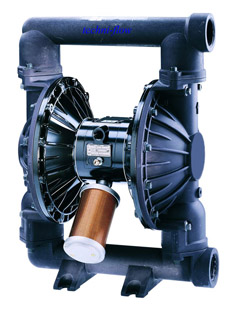

Pump ATEX TFG400 1"1/2
Air operated diaphragm pump TFG800 2"

TFG800-ATF
TFG800-ASP
TFG800-STF




KITFLEX800-ATF
KITFLEX800-ABN
KITFLEX800-STF


pneumatic pump Atex TFG1500Air operated diaphragm pump TFG1500 3"

TFG1500-ATF
TFG1500-ABN
TFG1500-ASP
TFG1500-STF


KITFLEX1500-ATF
KITFLEX1500-ABN
KITFLEX1500-ASP
KITFLEX1500-STF
