LOBE PUMPS FOR WINE MAKING

Techni-flow pumps
pumps@techni-flow-pumps.com

A SINGLE PUMP FOR
Continuous use in the wine-making process


lobe pumps for wine making
MAIN DYNAMIC CHARACTERISTICS
  • Low rotation speed
  • Practically continous flow
  • Self-priming
  • Revsible
  • Delicate, emulsion-free product pumping
  • Passage of solids up to 50mm
  • Variable flow though speed changer
  • High displacement volume
  • Respectful with skins, seed and small solids

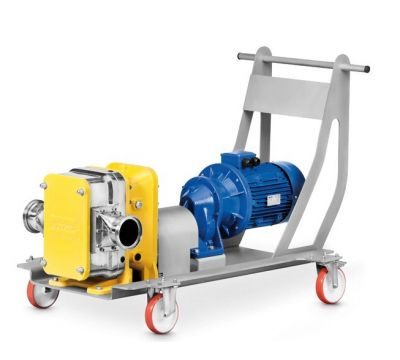

rotary lobe pumps
PERFECT OPERATION
Perfect operation thanks to their synchronism, delicate treatment of the product at low speeds, compact size, ease of maintenance, reversibleflow, etc. Possibly the best modern pump for wine-making.
APPLICATIONS
  • High-flow wine transfer
  • Loading and unloading of lorries
  • Must pumping
  • Destemmed and pressed grape pumping
  • Refrigerator feed
  • Filtration

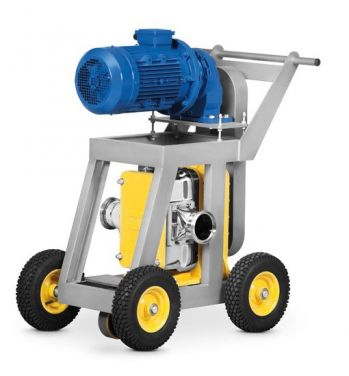

With feed hopper
    • Whole grape pumping
    • Fermented grape pumping
    • Paste pumping

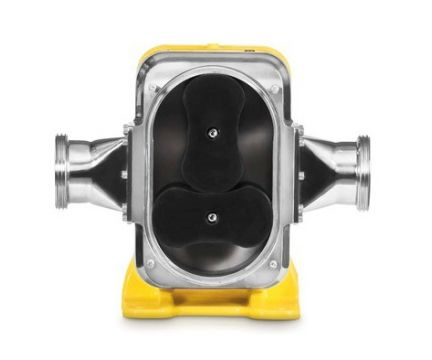

lobe pumps for wine making
ACCESSORIES AVAILABLE
  • Several connections
  • Stainless steel trolleys
  • Compact trolley version
  • Safety pressure switch
  • Feed hopper
  • Remote control
CONSTRUCTIVE DETAILS
  • Pomp body in AISI 316L stainless steel
  • Food-grade rubber-coated rotors
  • Lateral wear plates
  • Compact design
  • Easy maintence
  • Abrasion résistance
