Air operated diaphragm pumps

The applications in the surface treatment industry require pumps which can transfer high agressive chemicals. We provide you with a big range of pumps that were developed for this special use.

Numerous applications are possible:
- degreasing, bating, deposit of electrolytes, galvanic coating, galvanic plastic, electrosilvering, nickel coating, anodic treatment, sulphur bloom, phosphate coating, chromium plating etc.

The pump technology is getting used in the environment industry for the treatment of liquids after the surface treatment, before draining or recycling.
PLASTIC PUMPS / POLYPROPYLEN:
Polypropylen is chemical compatible with a lot of chemical liquids for the surface treatment. The air operated diaphragm pump is a very economical solution and an excellent working tool.

Pneumatic pumps with double membrane
TFG025-PTF   flow rate max. 18l/min
body polypropylen, membrane PTFE

TFG100-PTF   flow rate max. 50l/min
body polypropylen, membrane PTFE

TFG200-PTF   flow rate max. 189l/min
body polypropylen, membrane PTFE

TFG400-PTF   flow rate max. 340l/min
body polypropylen, membrane PTFE

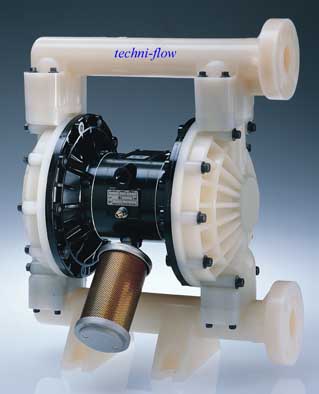

 		    Membrane pump TFG400
PLASTIC PUMPS / PVDF:
PVDF is a plastic which is comptatible with high concentrated chemical fluids. It is used when polypropylene is not resistent to the pumping fluid.

Pneumatic pumps with double membrane

TFG025-KTF  flow rate max. 18l/min
body PVDF, membrane PTFE

TFG100-KTF flow rate max. 50l/min
body PVDF, membrane PTFE

TFG200-KTF flow rate max. 189l/min
body PVDF, membrane PTFE

TFG400-KTF flow rate max. 340l/min
body PVDF, membrane PTFE


Peristaltic pumps

The Techni-Flow peristaltic pumps are a good option if you do not dispose of compressed air.

These are the technical advantages of a peristaltic pump:
- reliability
- simple maintance
- no gaskets
- only the flexible tube is in contact with the fluid
- dry run possible

TF-AMP22  flow rate max. 250 l/h - 810 l/h  pin 1"
TF-FMP30  flow rate max. 468 l/h - 1170 l/h  pin 1"1/4
TF-FMP40  flow rate max. 990 l/h - 2475 l/h  pin 1 1/2"

The flexible tube can be, depending on the chemical characteristics of the fluid, made of the following materials:
EPDM, HYPALON, NORPRENE


Magnetic drive centrifugal pump for galvanic liquids
product range polypropylen
The centrifugal pumps with magnetic coupling have been optimized for the pumping of fluids in the surface treatment. Generally they are used for the transfer of relative clean liquids. The advantage of this pump technology is its very high flow rate.


TFM7-TFM15-TFM25    flow rate max. 0,6 m3/h   1,8 m3/h    3,4 m3/h
TFM35-TFM50-TFM70  flow rate max. 3 m3/h      4,5 m3/h   5,5 m3/h
