TFG200 METALIC AIR OPERATED DIAPHRAGM PUMPS

techni-flow pump


pumps@techni-flow-pumps.com



Air operated diaphragm pumps range

drum pumps range

Peristaltic pumps range

The air operated diaphragm pumps range  TFG200 metalic  have the characteristic to generate a very high throughput (more than 133l/mn ) in size and weight minimum. The air operated diaphragm pumps  so many applications or the wheelbase or portability are important parameters :

Pumping and cleaning tank bottom or diesel fuel, fluid pumping enamelling in the ceramic industry , pumping ink autofill ancriers printing machinery, oil gavage filre rapeseed for biofuels gavage filter presses high pressure oil pump used cutting . and many other applications of pneumatic pumps .

If the specifications of this pump range are too far from your application we probably technique among other dimensions of pumps solution :

If the fluid viscosity is greater than 7000 cpo, we recommend you choose a pneumatic diaphragm pump high dimension , for example pneumatic pump TFG400 membranes which allows higher viscosities 10,000 cpo .

If your product combines high viscosity and contains abrasive particles , in this case it is advisable to further reduce the velocity of the fluid , pneumatic diaphragm pump TFG800 will probably be the solution. to the extreme range of pneumatic diaphragm pump TFG1500 will provide maximum throughput on water 10100l/mn .

For applications on liquid viscosity of less than 7000 cpo the pumping rates may be higher , it is necessary to see if a smaller pump will give you satisfaction : The range of pneumatic diaphragm pump TFG100 support viscosities up to 3000 cpo

air diaphragm pumps for barelair operated tu pump glue
Flow curve of the tfg200 diaphragm pumps

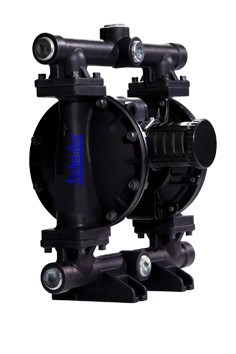

atex air operated diaphragm pumps TFG200


                Main reference pneumatic diaphragm pump TFX200

REFERENCE
BODY
DIAPHRAGM
TFG200AGE
ALUMINIUM
GEOLAST
TFG200ATF
ALUMINIUM
PTFE
TFG200STF
INOX
PTFE


Although the volumetric pump  TFX 200 is a smart choice for numerous industrial applications, the specificity that made you discover this pneumatic pumps on our site are also declining in other technology that may perhaps favorably resolve your issue if you plan to use this pump for example empty barrels 200l or 1000l IBC container, our range of centrifugal or positive displacement vacuum pump, electric or pneumatic drums is another solution with many asset without doubt.

 Also if you have chosen a volumetric pneumatic diaphragm pump for ease of maintenance and their ability to walk dry without damage, peristaltic volumetric Techni-flow pumps are also a solution with many advantages
