PERISTALTIC HOSE PUMPS TF-AMP |
Techni-flow pumps pumps@techni-flow-pumps.com Peristaltic hose pumps range. Peristaltic pumps TF-FMP Peristaltic pumps TF-RBT |
The
peristaltic hose pump techni-flow amp series is designed to transfer
applications or dispensing any liquid or pasty fluid, chemical or food:
the only piece on contact with the fluid is the peristaltic tube: a
roller just crush the tube to extract fluid: this principle allows a
fluid pumping high viscosity <100.000cpo the other hose is the only
piece on contact with the fluid a complete seal is maintained over the
peristaltic pump techni-flow AMP allows march dry without damage. Compression system of the tube roller with ball bearings and lubrication pipe by supplying silicone grease. Application of peristaltic pumps techni-flow AMP: Pumping effluent from wastewater treatment plants, pumping acid pumping soda, liquid food for animals pumping, pumping honey, fruit juices pumping, pumping food coloring etc.. If your application requires a higher 900l/mn range of peristaltic pumps TF-AMP speed you have a throughput capacity exceeding 22m3 / h. For applications with higher output pressures series peristaltic pump TF-RBT has a reserve of high pressure can go up to 15bar. For emptying drums we also have a range of drum pump for liquid or viscous fluid |
This technology is slightly pulsating peristaltic pump to avoid is fenomaines which can be problematic for your process, we have developed a range of dampers |
AVAILABLE OPTIONS: -Mounting carriage Tri-clamp fitting stainless steel food Variable-speed mechanical or electronic -Detector tube rupture. Lung-pulsation damper. Electronic Equipment dosing. |

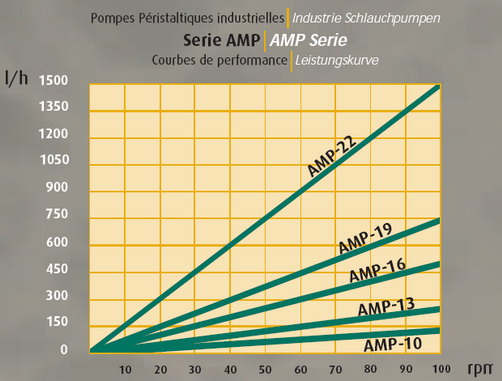

-Max flow of water 1350 l / h Max-P 8 bar Tube available in: NBR EPDM NR-FOOD NORPRENE TYGON Hypalon NBR FOOD |
You will find on the following pages a large part of the main specifications peristaltic pump. Applications of peristaltic pumps are very large in addition we made a summary of the applications of air operated diaphragm pumps which are very similar and can help you complete your installation. |
